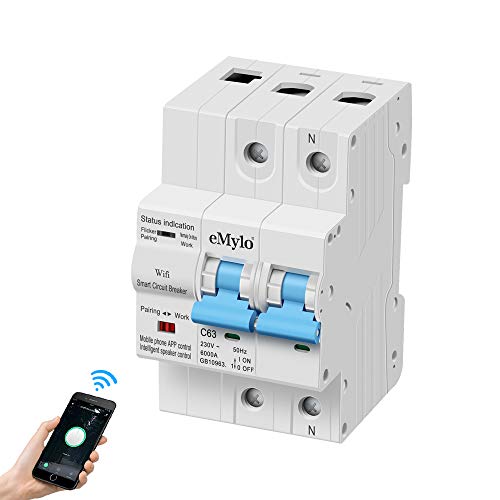

eMylo smart wifi circuit breaker be used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit,connected appliances will automatically disconnect once the power/current/voltage reaches threshold values. Also you can control the appliance via your smart phone according to your requirement.
Rated voltage: AC 220-240V/50Hz
Number of poles: 2P
Pollution levels: Level 2
Protection level: IP20
Specified use temperature: -25℃-+65℃
Rated current: 63A
Instantaneous tripping form: C
Rated short circuit breaking: 6kA
Rated impulse withstand voltage: 6kV
Mechanical life: More than 10,000 times
Electrical life: More than 60,000 times
How to use:
1, Download “smart life” APP on your smart phone and login. Then click “+”button at upper right corner to add device, choose wifi socket.
2, Connect the wifi circuit breaker and device to power correctly, the indicator light will fast flash after wait a few seconds, then trun mode switch of circuit breaker to work state,then click “confirm the indicator rapidy blink” on the phone.
3, Enter your wifi password to connect APP to your wifi net,then confirm. Please kindly note only 2.4G wifi is available.
4, After connect successfully, you can remotely control your device via app, also you can set timing and delay function according to your preference.
1 x Miniature Circuit Breaker
1 x User manual
1. Cut off power supply before connect the wifi smart circuit breaker and device.
2. The protection characteristics of circuit breaker are set by the manufacturer, don’t arbitrary disassembly and adjustment
3. Don’t operate circuit breaker with wet hand, otherwise, electric shocks could happen.
Make sure this fitsby entering your model number.
♥Remote and Voice Control: Remotely control connected appliances from anywhere at any time, set up automatically turn on / off / time / count down of home appliance according to your schedule by “smart life” APP. Also eMylo intelligent circuit breaker compatible with Alexa and Google home, you can control device by voice command
♥Responsible housekeeper: Your will receive the remind message from mobile phone when the status of connected home appliance changed, it will be a responsible housekeeper for your family.
♥Home Security Protection: With multiple overload protection. Connected appliances will automatically disconnect once power/current/voltage reaches threshold values. Make your family’s safety. Meanwhile, fast trip to ensure reliable operation of the load and prolong the life of electrical circuit breakers.

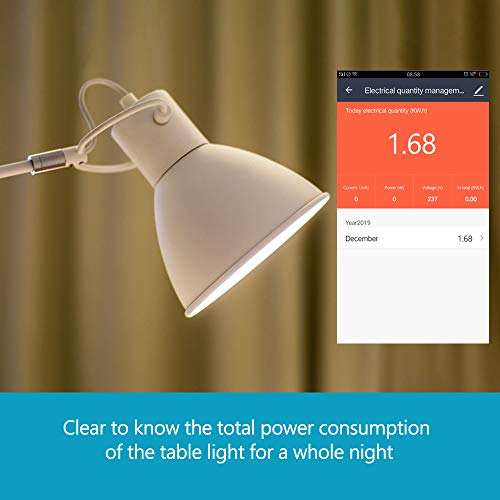

♥Real-time Monitoring: You can check the total power consumption of connected device every month through smart phone. Then you will know which device cost your most bills, help you manage the deive easily and save money.
♥Durable and Reliable: All circuit breaker are tested under 6000V impulse withstand voltage before delivery, enhance device’s life time even under the overload situation.Improve the performance of opening and closing,prevent overheating and aging.
